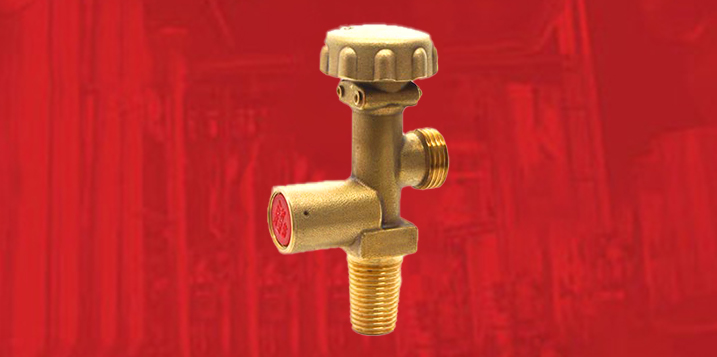

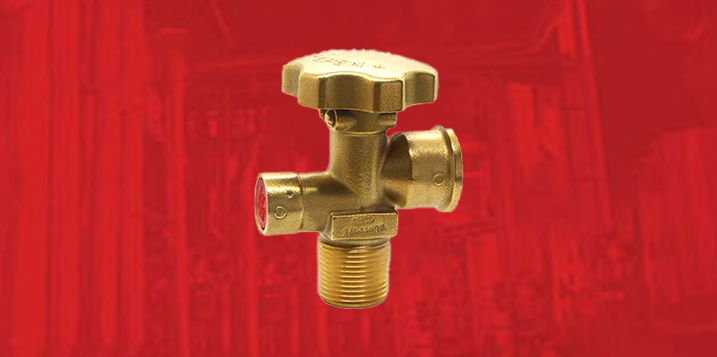

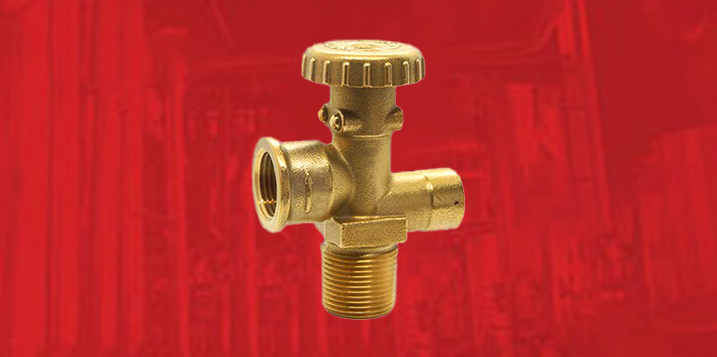

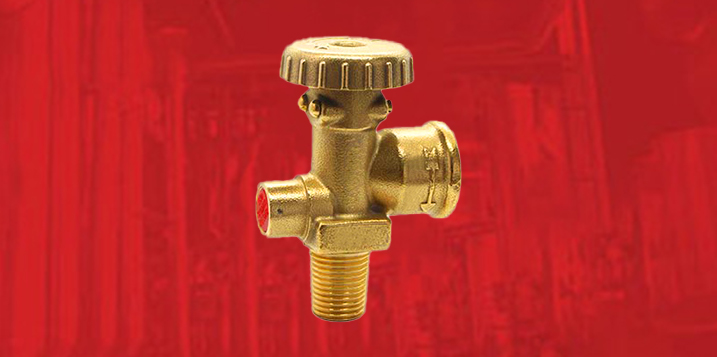

Hand Wheel Type Valves with Safety Relief (PRV)

Hand Wheel Type Valves with Safety Relief (PRV)

Inlet Connections:
Ø23.2x2.0, W28.8 DIN 477, 3/4" - 14 NGT
W19.8 DIN 477, M26.0x1.5-6g & Ø19.3x1.814
Outlet Connections:
W20.0x1.81 4- LH, Ø21.7x1.814 - LH
G5/8 - 14BSP - LH, 0.885" - 14NGO - LH & W21.8x1.814 - LH DIN477
Pressure Relief Valve (PRV):
26 Bar, Flow Capacity 4m3 air/min
26 Bar, Flow Capacity 10m3 air/min

Also available in different types of Inlet and Outlet connections as per buyer's requirements. Also available with flow limiter - P,B,D.
