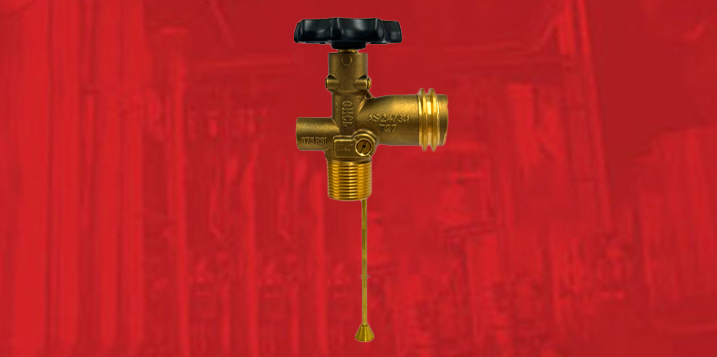

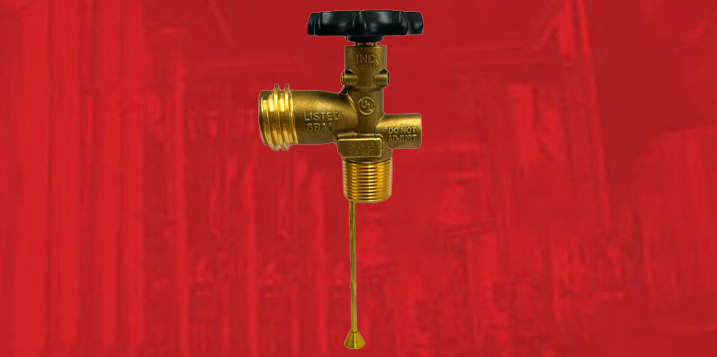

OPD Valves

YSDT - LP-Gas Shutoff Valves are UL listed and approved and as per UL 1769 Standard. The valves are available with OPD for 20 lbs, 30 lbs and 40 lbs cylinder. An Overfill Prevention Device (OPD) valve on propane cylinders offers several important advantages: The primary advantage of an OPD valve is enhanced safety. The valve prevents the overfilling of propane cylinders by shutting off the flow of gas once the cylinder reaches 80% capacity and the QCC outlet ensures secure connection between the Regulator and the valve to avoid leaks.

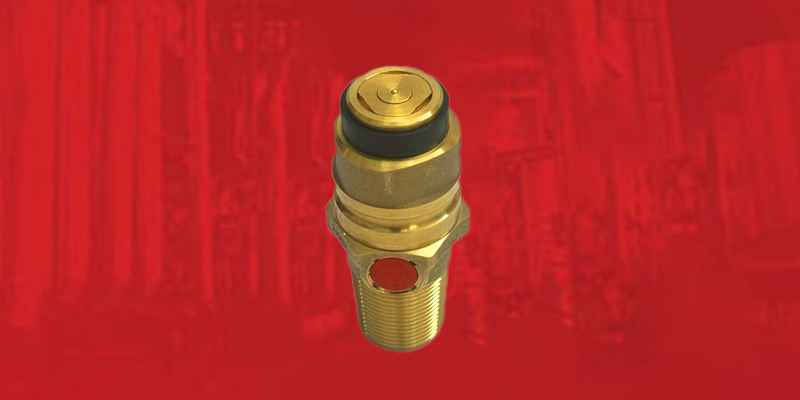

Jumbo Valves Flat Top

Inlet Connections:

Ø23.2x2.0, W28.8 DIN 477, 3/4" - 14 NGT
W19.8 DIN 477, M26.0x1.5-6g & Ø19.3x1.814

Outlet Connections:

Ø35.0 mm

Pressure Relief Valve (PRV):

26 Bar, Flow Capacity 4m3 air/min
28 Bar, Flow Capacity 4m3 air/min

Jumbo Valves Flat Top for Ireland, Iraq and Kuwait. Qualified supplier for Kuwait Oil and Tanker Company (KOTC).

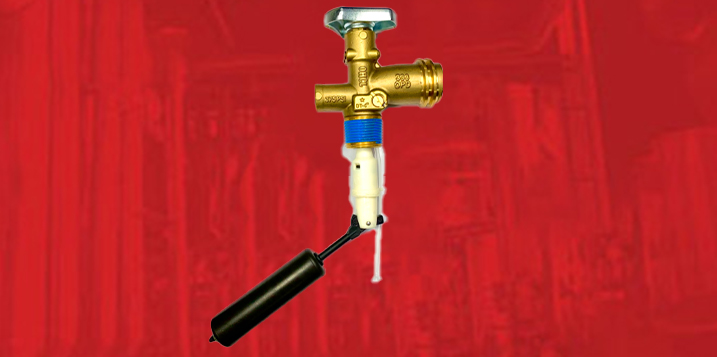

LCC27 Valves

YSDT - LP-Gas Shutoff Valves are UL listed and approved and as per UL 1769 Standard and meets the requirement of Australian Standard. The LCC27 standard is specifically for propane (LPG) valves, and it is used primarily in Australia and New Zealand. This standard was introduced to replace the older POL (Prest-O-Lite) valve in these countries to improve safety and compatibility. The LCC27 valve system is designed to prevent cross-threading, improve gas flow, and reduce the risk of leaks.

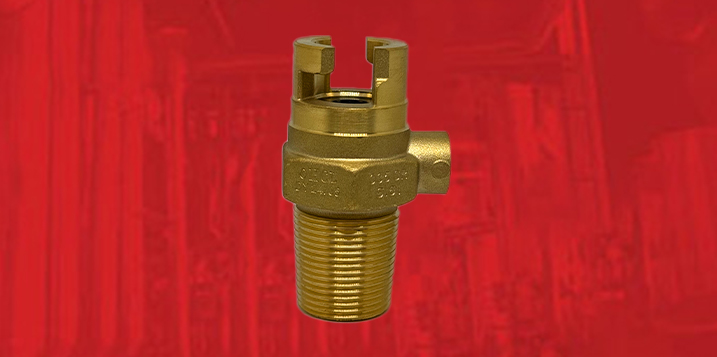

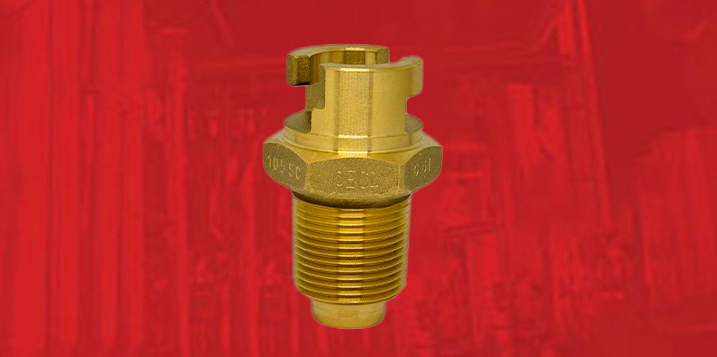

Bayonet Valves

Inlet Connections:

W28.8 DIN 477, 3/4" - 14 NGT
Ø26.2x2.0 & M26x1.5

Outlet Connections:

G.61

Pressure Relief Valve (PRV):

26 Bar, Flow Capacity 4m3 air/min

Also available in different types of Inlet and Outlet connections & PRV as per buyer's requirements.
